3/4" Low Flow Pressure Reducer

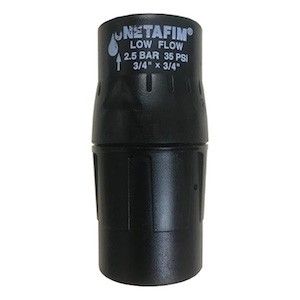

Netafim 3/4in Low Flow Pressure Regulator 0.25-4.4GPM

Medium Range Pressure Regulator

High strength ABS construction and stainless steel springs provide long-life and can be used in a variety of applications while the rolling diaphragm and sealed regulating chamber provide consistent, high-quality performance in any irrigation system. Operating inlet pressure range: 30 to 150 PSI.

Converts High Inlet Pressure to Desired Outlet Pressure

• Reliable Performance: Rolling diaphragm and sealed regulating chamber provide consistent, high-quality performance in any irrigation system.
• Durability: Chemical resistant, high strength ABS construction, and stainless steel springs provide long-life and can be used in a variety of applications where chemicals or aggressive water may be present.

Product Advantages

• Easy Line Assembly - 3/4” low flow model - female inlet/outlet. 3/4” high flow model - female inlet and male outlet.
• Sealed Regulating Module - Available on 3/4“ high flow and 1 1/2” pressure regulators
• Built-in Indicator On ¾” High Flow And Larger Models - Indicates when proper outlet pressure is achieved.

Applications

• All irrigation systems

Specifications

• 3/4″ low flow model: 0.25 to 4.4 GPM
• 3/4″ high flow model: 4.5 to 17.6 GPM
• 1 1/2″ model: 11 to 35 GPM
• Other models available up to 175 GPM
• Maximum operating pressure: 145 psi
